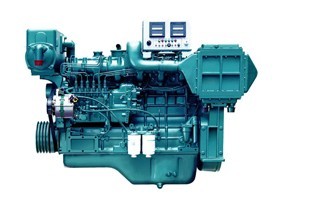

YC6B series marine diesel engine |
 |
Features & Benefits£º
-
Adopted technology of FEV (German) and Yamaha (Japan).
-
Solid forged steel crankshaft, frame and cylinder head made of alloy cast iron,slide bearing, small bulk, light weight, less vibration, low noise, high reliability, overhaul interval is over 10000 hours.
-
P-type high pressure, low fuel consumption, fuel seal of valve added, Seal technology for piston ring and valve oil-sealing technique, low fuel consumption
-
Equipped with intelligent digital monitoring instrument for local and romote control , convenient operation, monitoring and automatic protection on diesel engine, ensurance the safety of the engine.
-
Perfect power supply for engine of yacht and cargo ship and 59~90KW generator sets
Main technical parameters:
form 1
|
Model
|
YC6B80C
|
YC6108CA
|
YC6108CA1
|
YC6B100-C20
|
|
Type
|
Vertical, in-line, water-cooled, 4-stroke
|
|
Intake way
|
Natural aspriation
|
|
No. of cylinders X Bore X Stroke£¨mm£©
|
6×108×125
|
|
Piston displacement£¨L£©
|
6.871
|
|
Compressure ratio
|
17.5:1
|
|
Continuous power /speed£¨kW/r/min£©
|
58.8/1500
|
63/1500
|
82/2000
|
74/1800
|
|
One-hour power/speed£¨kW/r/min£©
|
|
64.7/1548
|
69.3/1548
|
90.2/2065
|
81.4/1858
|
|
|
/
|
69.3/15 00
|
/
|
/
|
|
Min. specific fuel oil consumption£¨g/kW·h£©
|
≤218
|
|
Specific lube oil consumption (g/kW·h)
|
≤0.8
|
|
Crankshaft rotation direction (seen from power output end)
|
Anticlockwise
|
|
Net weight (kg)
|
700
|
|
Overall dimensions (LxWxH)mm
|
1252×780×1075
|
|
Matched reduction gearbox
|
HC65¡¢120C etc.
|
|
Specification of connection with gearbox
|
Casing£ºSAE2# £¬Flywheel £º11.5¨•
|
|
Main application
|
Fishing boat's engine
|
Engine or gensets of passenger,cargo,fishing ship
|
Engine of passenger,cargo,fishing ship
|
Passenger,cargo ship's engine
|
form 2
|
Model
|
YC6B100C
|
YC6B110C
|
YC6108ZC
|
YC6108ZCA
|
|
Type
|
Vertical, in-line, water-cooled, 4-stroke
|
|
Intake way
|
Turbo charging
|
|
No. of cylinders X Bore X Stroke£¨mm£©
|
6×108×125
|
|
Piston displacement£¨L£©
|
6.871
|
|
Compressure ratio
|
17.5:1
|
|
Continuous power/speed£¨kW/r/min£©
|
75/1500
|
79/1500
|
80/1500
|
103/2300
|
|
1hour power/speed£¨kW/r/min£©
|
Main machine
|
82.5/1548
|
86.9/1548
|
88/1548
|
113.3/2374
|
|
Ancillary machine
|
/
|
/
|
88/1500
|
/
|
|
Min. fuel oil consumption£¨g/kW·h£©
|
≤210
|
|
Specific lube oil consumption (g/kW·h)
|
≤0.8
|
Crankshaft rotation direction (seen from power output end)
|
Anticlockwise
|
|
Net weight (kg)
|
720
|
|
Overall dimension(Lx WxH)mm
|
1293×780×1198
|
|
Matched reduction gearbox
|
HC65¡¢120C etc.
|
|
Specification of connection with gearbox
|
Casing£ºSAE2# £¬ Flywheel£º11.5¨•
|
|
Main application
|
Fishing boat's engine
|
|
Passenger, cargo, fishing ship's engine or gensets
|
Passenger, cargo, fishing ship's engine
|
form 3
|
Model
|
YC6108ZLCA
|
YC6B150C
|
YC6B165C
|
YC6B165L-C20
|
|
Type |
Vertical , in-line , water cooled , 4 stroke
|
|
Intake way
|
Turbo-charging & inter-cooling
|
|
No. of cylinder x bore x stroke£¨mm£©
|
6×108×125
|
|
Piston displacement£¨L£©
|
6.871
|
|
Compressure ratio
|
17.5:1
|
|
Continuous power/speed£¨kW/r/min£©
|
90/1500
|
110/1800
|
120/2300
|
120/1800
|
|
1hour power / speed£¨kW/r/min£©
|
Main machine
|
99/1548
|
121/1858
|
132/2374
|
132/1858
|
|
Ancillary machine
|
99/1500
|
/
|
/
|
|
|
Specific Min. fuel oil consumption £¨g/kW·h£©
|
≤208
|
|
Specific lube oil consumption (g/kW·h)
|
≤0.8
|
|
Crankshaft rotation direction (Seen from power output end)
|
Anticlockwise
|
|
Net weight (kg)
|
750
|
|
Overall dimension (LxWxH)mm
|
1415×877×1025
|
|
Matched reduction gearbox
|
HC65¡¢135¡¢120C etc.
|
|
Specification of connection with gearbox
|
Casing£ºSAE2#, Flywheel£º11.5¨•£»Other selection£ºCasing£º135, Flywheel£º135 or Casing£ºSAE1#, Flywheel£º14¨•
|
|
Main application
|
Passenger, cargo ,fishing ship's engine
|
Passenger, cargo ,fishing ship's engine
|
Passenger, cargo ,fishing ship's engine
|
Passenger and cargo ship's engine
|
|
| |
|
|
